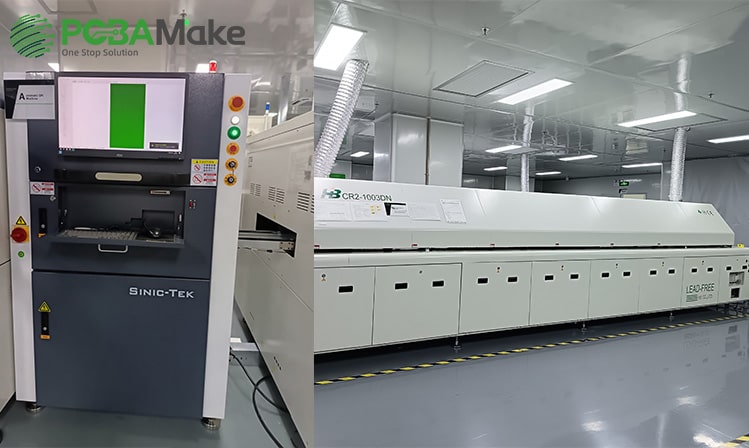

In the field of modern electronic manufacturing, surface mount technology (SMT) is one of the indispensable core technologies. For PCBA (Printed Circuit Board Assembly) manufacturers, it is crucial to ensure the quality of each production step. In the entire SMT production process, solder paste printing (Solder Paste Printing) is a key link. In order to ensure the quality of solder paste printing, PCBAMake has introduced advanced solder paste inspection (Solder Paste Inspection, SPI) equipment.

What is SPI?

SPI is a technology used to detect the quality of solder paste printing on PCBs. Through optical or laser scanning technology, SPI performs three-dimensional measurement and analysis of solder paste printed on PCBs to ensure that parameters such as thickness, volume, area and position of solder paste meet process requirements. SPI equipment can quickly identify possible problems in the printing process, such as too much solder paste, too little solder paste, misalignment, bridging, etc., so as to correct them in time and avoid defects in subsequent welding processes.

The role of SPI in SMT processing and production

Improve production quality

By using SPI equipment, PCBAMake can detect and correct problems in solder paste printing at an early stage. This greatly improves the soldering quality of PCB assembly and reduces rework and scrapping caused by soldering problems. On PCBAMake's production line, SPI equipment plays an important role in improving the qualified rate of products every day.

Shorten the production cycle

During the production process, problems in any link may cause delays in the entire production process. PCBAMake's SPI equipment can quickly detect and feedback solder paste printing quality problems, so that the production line can be adjusted in time to avoid shutdowns and rework caused by defect accumulation. This not only shortens the production cycle, but also significantly improves production efficiency.

Data analysis and process improvement

PCBAMake's SPI equipment is equipped with powerful data analysis functions. Through the analysis of detection data, PCBAMake's engineers can understand the common problems and trends in the solder paste printing process, find out the root causes of the problems, and make process improvements. For example, by analyzing the printing data of different batches, we can find out whether there are problems such as template loss, improper equipment operation or material quality fluctuations, so as to take targeted improvement measures.

Improve product reliability

High-quality solder paste printing is the basis for ensuring the reliability of electronic products. Through SPI detection, PCBAMake can ensure that every solder joint meets the process requirements, thereby improving the reliability of welding and reducing circuit failures caused by poor welding. This is of particular significance for high-reliability electronic products produced by PCBAMake, especially those used in communication equipment, medical devices and aerospace electronics.

Working principle of SPI

The SPI system of PCBAMake usually consists of an optical scanner, image processing software and data analysis software. Its workflow is as follows:

Scanning: Scan the printed PCB with a laser or optical scanner to obtain a three-dimensional image of the solder paste.

Image processing: The image processing software processes the scanned data to extract parameters such as the thickness, volume, area and position of the solder paste.

Data analysis: Compare the extracted data with the preset process standards to determine whether the solder paste printing meets the requirements.

Feedback and alarm: If unqualified solder paste printing is detected, the SPI system will issue an alarm and feedback the specific defect information to the operator for timely adjustment and correction.

SPI plays a vital role in the SMT production process of PCBAMake. It not only improves production quality and efficiency, but also continuously improves our production process and ensures product reliability through data analysis and process improvement. As a manufacturer committed to providing high-quality PCBA, PCBAMake will continue to rely on advanced SPI technology to maintain its leading position in the industry and provide customers with more reliable electronic products.
