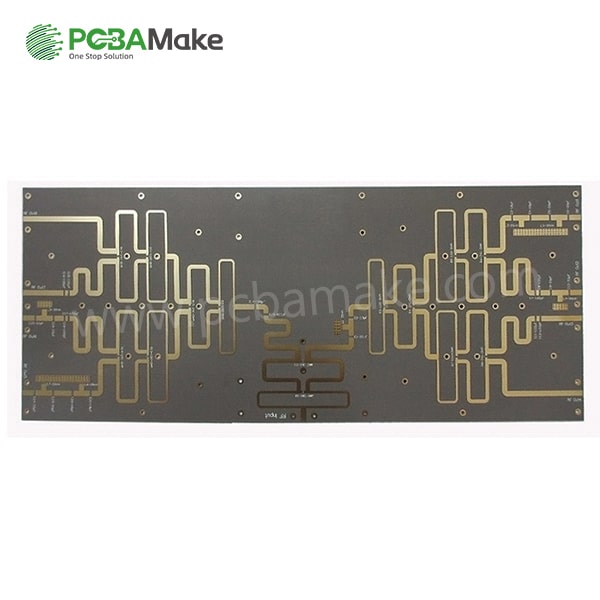

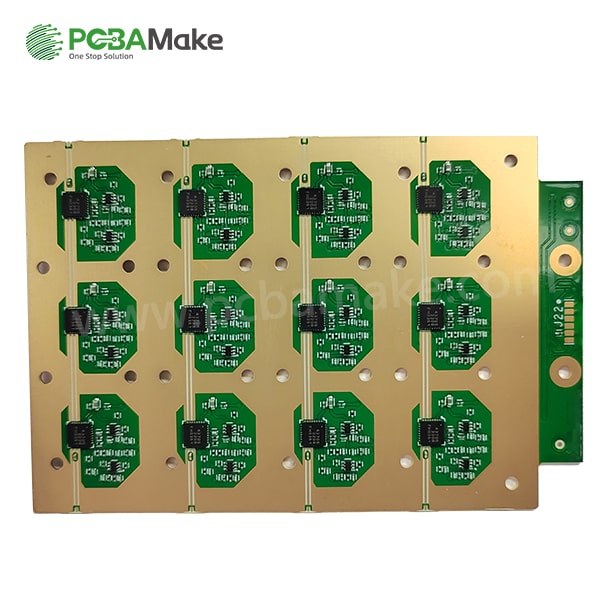

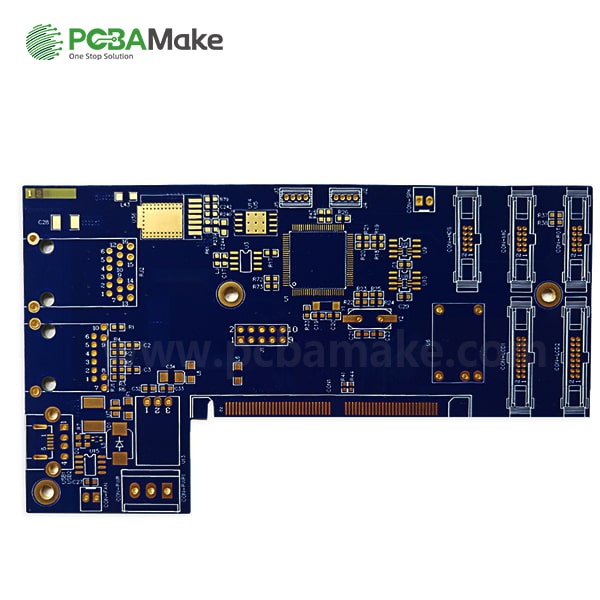

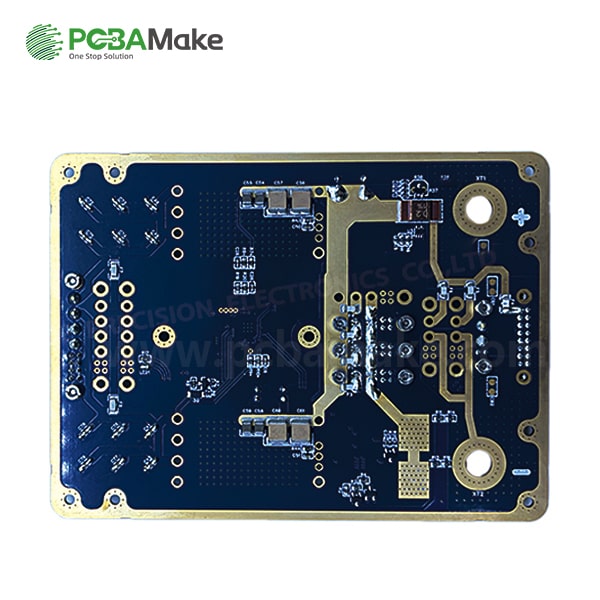

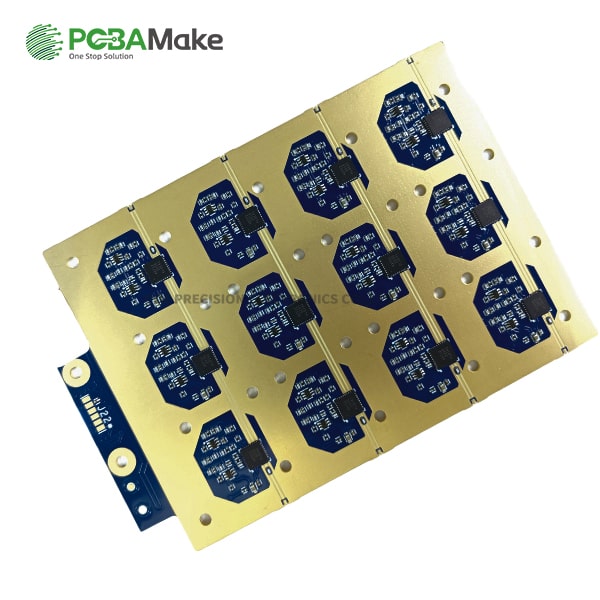

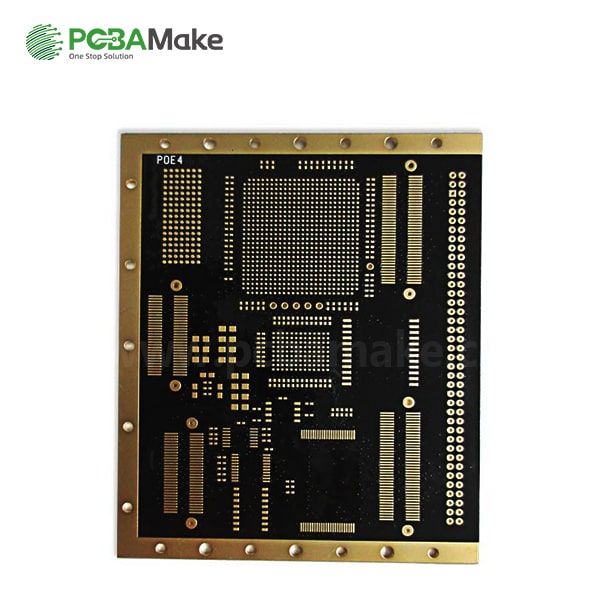

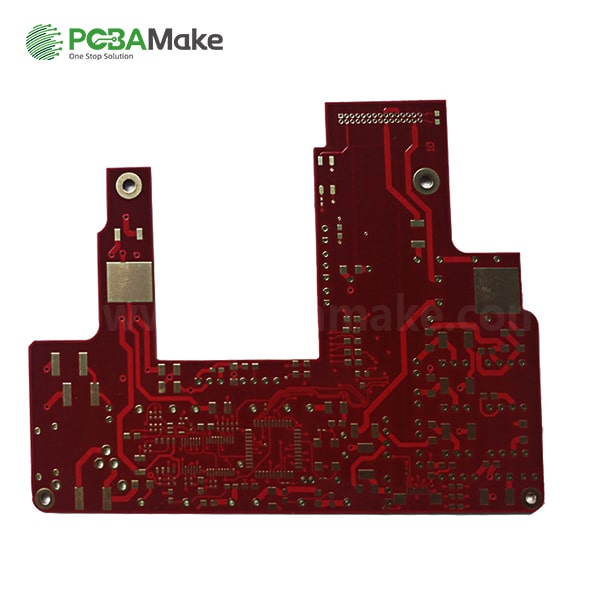

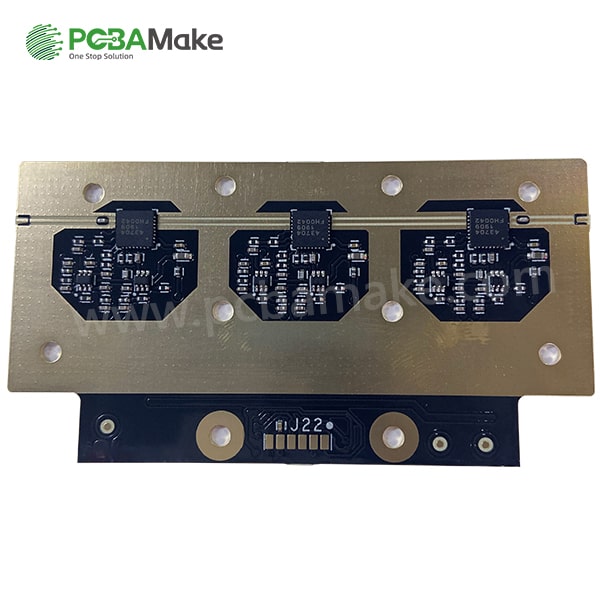

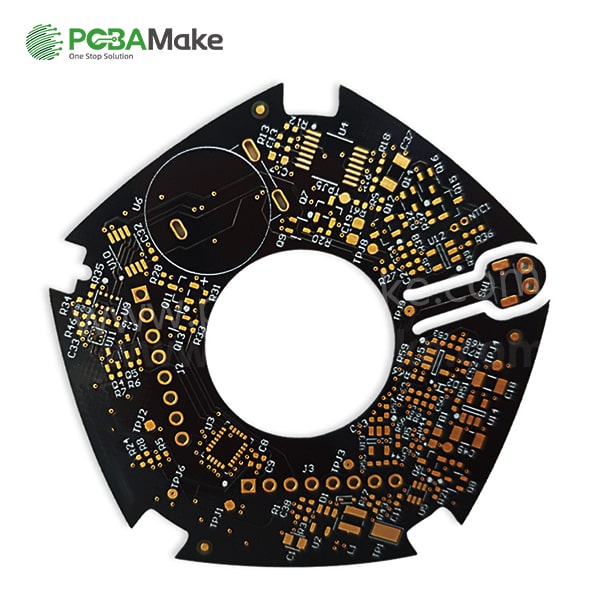

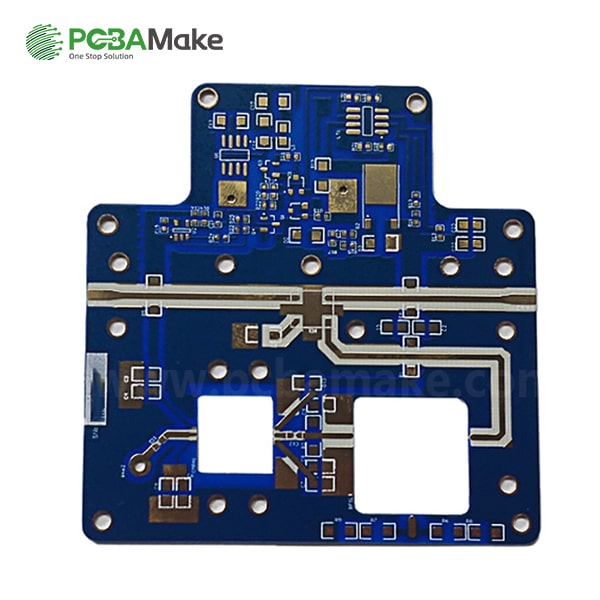

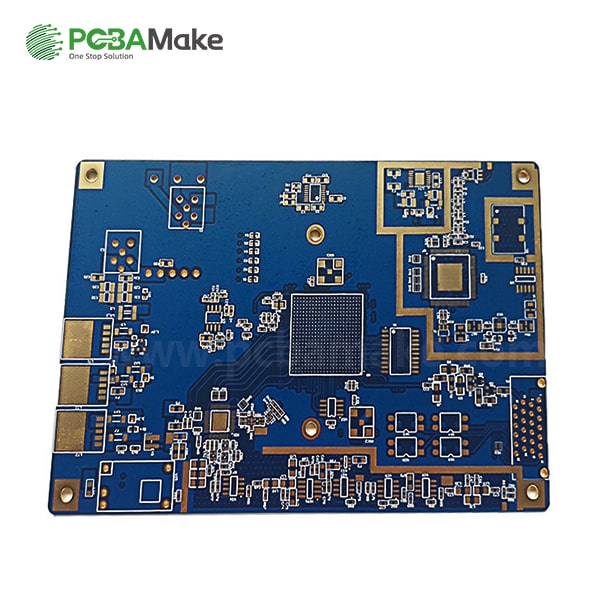

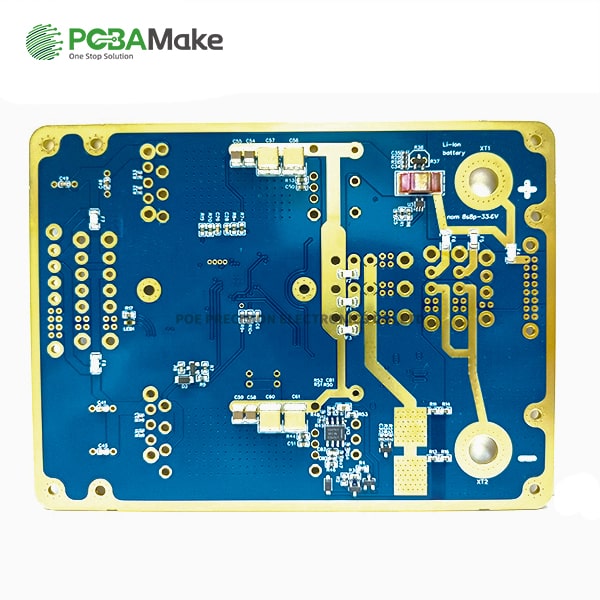

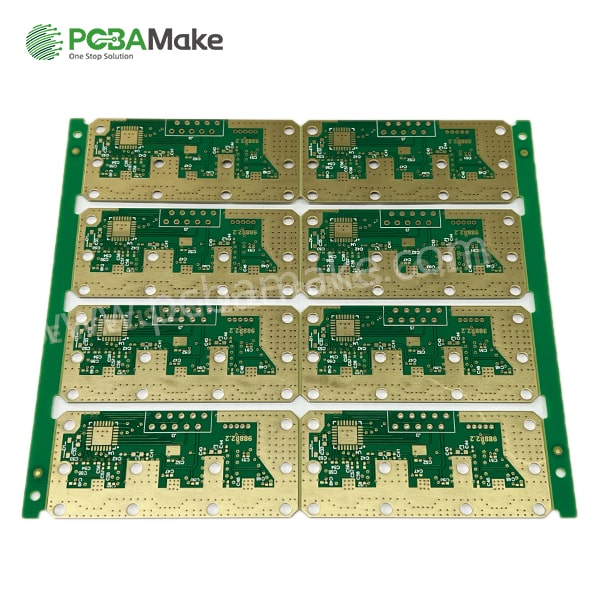

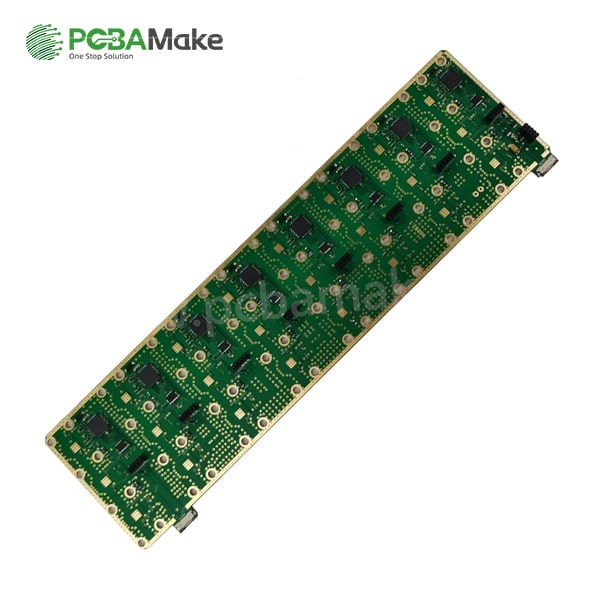

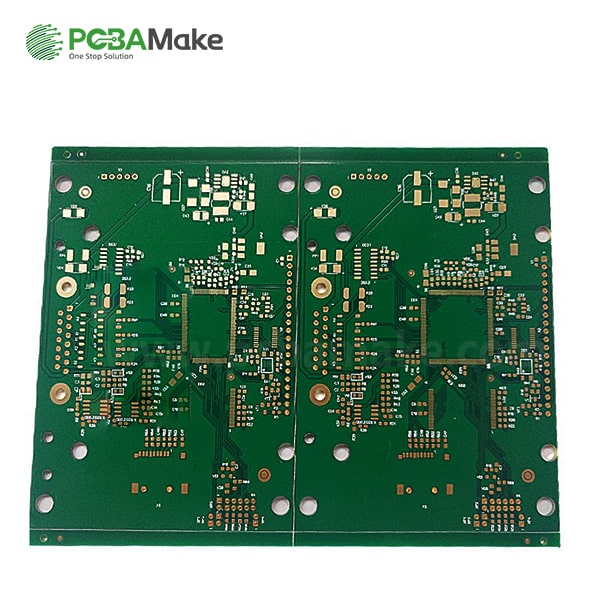

hf pcb

High Frequency PCB

High -frequency PCB is widely used in the communication industry and network technology fields

Material: RO4003C, RO4350B, Ro3003, Ro3010, RT5880
Finish treatment: Immersion Gold
Copper thickness: 1oz~ 2oz
Board Size:Min 6mm x 6mm | Max 457mm x 610mm
Solder Mask Color:Green, White, Blue, Black, Red, Yellow

REQUEST A QUOTE
High Frequency PCBs – Technical specification
Feature Technical specification
Number of layers 2 - 40 layers
Technology highlights We manufacture high-frequency PCBs with frequency typically in the range from 500MHz to 2GHz.We have the ability to achieve various difficult HF PCB for you
PP Rogers 4450F, Domestic-(25FR), Domestic-(RF-27), Domestic-(6700)
Materials RO4003C, RO4350B, Ro3003, Ro3010, RT5880
Copper weights (finished) 0.5oz - 2.oz
Min Tracing/Spacing 3mil/3mil
PCB thickness 0.40mm - 5.00mm
Board Size Min 6mm x 6mm | Max 457mm x 610mm
Surface finishes available OSP, ENIG, Immersion tin, Immersion silver, Gold fingers
Silkscreen Color White, Black, Yellow
Silkscreen Sides As per the file
High Frequency PCB
High-frequency electronics are the trend today, especially in wireless networks.
The rapid growth of satellite communications, the development of information products to high-speed, high-frequency. Therefore, the development of new products always requires the use of high-frequency substrates, satellite systems, mobile phone receiving base stations, etc. These communication products must use high frequency PCBs.
A high frequency PCB is a special type of PCB with high electromagnetic frequencies. Generally speaking, a high frequency PCB can be defined as a PCB with a frequency above 1GHz. The substrate material needs to have excellent electrical properties, good chemical stability, and with the increase of the power signal frequency, the loss on the substrate is very small, so the importance of high frequency PCB is highlighted.
High-frequency PCB circuit boards with induction heating technology have been widely used in the communication industry, network technology field promotion and high-speed information processing systems, meeting the requirements of many high-precision parameter instruments. Reliable high-frequency circuit boards provide great help in actual production.
