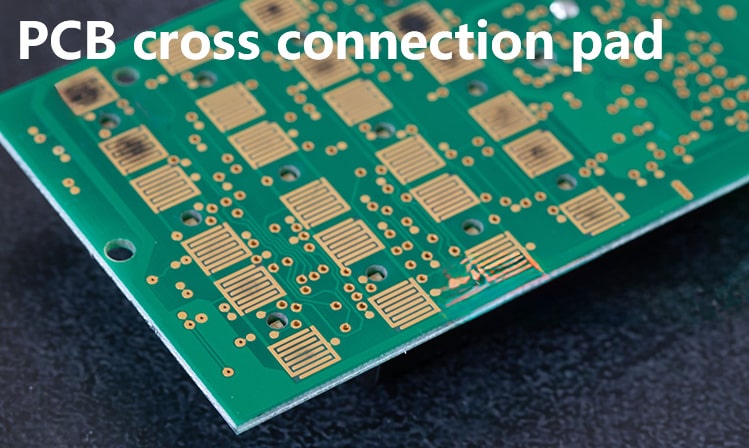

In the design and manufacture of PCBs, pads are the key part of connecting the pins of electronic components to the circuit. In order to improve the performance and reliability of pads, design engineers often use special pad structures, among which "cross connection pads" are favored in certain application scenarios due to their unique design and advantages.

PCB cross connection pads play an important role in the soldering process of electronic components. The following are the main benefits of PCB cross connection pads:

Reduce heat dissipation and improve welding quality:

The design of the cross connection pad helps to reduce the heat dissipation area of the pad during the soldering process, thereby slowing down the heat dissipation speed. This can prevent the problem of cold soldering or PCB peeling caused by excessive heat dissipation, and improve the reliability and stability of soldering. Especially when soldering the ground wire, the cross flower shape can reduce the area of the ground wire connection, further slow down the heat dissipation speed, and make soldering easier.

Adapt to machine patch and reflow soldering:

For PCB boards that require machine patch and reflow soldering, the cross connection pad can provide more heat to melt the solder paste, thereby preventing the PCB from peeling. This is because the structure of the cross pad helps to maintain more heat during the soldering process.

Enhance the reliability of the circuit board:

The cross connection pad enhances the overall reliability of the circuit board by providing a fixed position for the solder and a structure to connect the circuit. This helps prevent component fall-off and other soldering-related problems.

Optimize circuit board design:

In circuit board design, the cross connection pad not only meets the soldering needs, but also optimizes the space utilization and layout of the circuit board through its unique design. This helps to reduce production costs and improve production efficiency.

PCB cross connection pads have significant benefits in reducing heat dissipation, improving soldering quality, adapting to machine patch and reflow soldering, enhancing circuit board reliability, and optimizing circuit board design. These benefits make the cross connection pad a very important process choice in the processing of electronic components.
